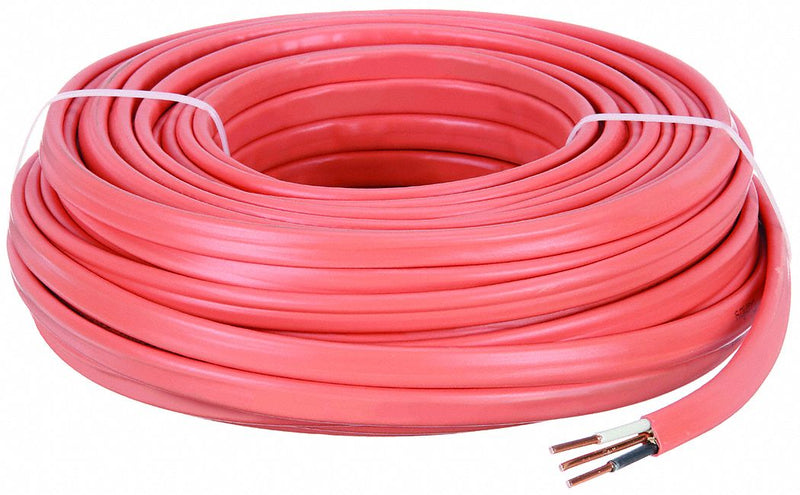

Romex 28829055 SIMpull NM-B Non-Metallic Building Cable, 10 AWG, 2 Conductors with Ground, 250 ft, Orange, 600V
Original price
$549.08
-
Original price
$549.08
Original price
$549.08
$549.08
-
$549.08
Current price
$549.08
Nonmetallic Building Cable, Number of Conductors 2, Wire Size 10 AWG, Trade Designation NM-B, Jacket Material PVC, Jacket Color Orange, Length 250 ft, Conductor Design Solid, Voltage 600 V, Wire Color Bare/Black/White, Nominal Outside Dia. 0.494 in x 0.210 in, Temp. Rating 194 Degrees F
| Trade Designation | NM-B |
|---|---|
| Conductor Material | Copper |
| Number of Conductors | 2C with Ground |
| Wire Color | Bare/Black/White |
| Jacket Color | Orange |
| Jacket Material | PVC |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Voltage | 600V AC |
| Temp. Rating | 194 Degrees F |
| Standards | UL 83, UL standard 719. Federal Specification A-A-59544 and requirements of National Electrical Code |
| Max. Amps | 30 |
| Application | NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness. |
| Stranding | 1 |
| Packaging | Coil |
| Applications | Southwire® Romex® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts. |
| Construction | Southwire Romex® Brand SIMpull® NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and Black - 8 AWG and 6 AWG. |
| Allowable Ampacity | 30 |
| Series | Romex(R) Brand SIMpull(R) |
| Number of Strands | 1 |
| Grounding Conductor Insulation Color | Bare |
| Conductor Insulation Material | PVC |
| Grounding Conductor Material | Copper |
| Conductor Insulation Color | Black, White |
| Temperature Rating - Maximum Dry | 194 Degrees F |
| Number of Ground Conductors | 1 |
| Number of Neutrals | 0 |
| Grounding Conductor Insulation Material | Uninsulated |
| Country of Origin | United States |
