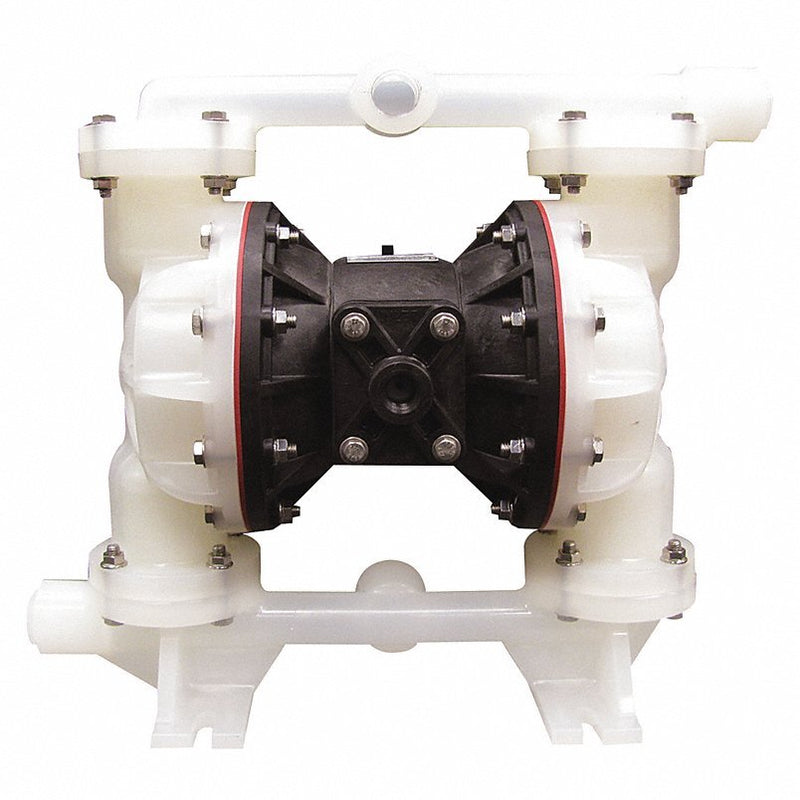

Sandpiper S1FB3PBPPNI000. Double Diaphragm Pump, Polypropylene, Air Operated, Buna N, 53 GPM
Original price
$2,300.47
-
Original price
$2,300.47
Original price
$2,300.47
$2,300.47
-
$2,300.47
Current price
$2,300.47
Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 53 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
| Housing Material - Pumps | Polypropylene |
| Diaphragm Material - Pumps | Buna N |
| Max. Flow | 53 gpm |
| Item - Air Operated Pumps | Double Diaphragm Pump |
| Pump Operation Type | Air Operated |
| Max. Temp - Pumps | 180 Degrees F |
| Connection Style | NPT |
| Agency Compliance | ATEX, CE, EAC |
| Manifold Connection | Multiport |
| Ball Material | Buna |
| Diaphragm Material | Buna N |
| Self-Priming Dry | 11 ft |
| Operation Type | Air Operated |
| Check Seat Material | Polypropylene |
| Item | Double Diaphragm Pump |
| Self-Priming Wet | 15 ft |
| Body Material | Polypropylene |
| Max. Temp. | 180 Degrees F |
| Max. Flow GPM | 53 |
| Valve Type | Ball |
| Max. Operating Pressure | 100 psi |
| Media Discharge Connection Type | NPT |
| Fluid Connection Type | NPT |
| Flow Rate @ 120 psi | Not Applicable |
| Media Discharge Type | NPT |
| Flow Rate @ 40 psi | 42.1 gpm |
| Media Discharge Location | Center, Top |
| Air Intake Connection Type | FNPT |
| Fluid Discharge Connection | 1 in NPT |
| Fluid Intake Connection | 1 in NPT |
| Pump Assembly Type | Bolt |
| Port Location | Bottom Top, Center Center, Center Top |
| Port Type Combined | NPT x NPT |
| For Use With Potable Systems | No |
| Wetted Housing Material | Polypropylene |
| Air Consumption (Maximum) | 45 scfm |
| Priming | Self-Priming |
| Housing Material | Polypropylene |
| Flow Rate (Maximum) | 53 gpm |
| Air Intake Pressure (Maximum) | 100 psi |
| Media Intake Location | Bottom, Center |
| Air Inlet | 1/2 in FNPT |
| Flow Rate @ 15 psi | Not Applicable |
| Flow Rate @ 10 psi | Not Applicable |
| Media Intake Type | NPT |
| Feet of Head (Maximum) | 231 ft |
| Media Temperature (Maximum) | 180 Degrees F |
| Flow Rate @ 30 psi | Not Applicable |
| Flow Rate @ 100 psi | 56.8 gpm |
| Flow Rate @ 60 psi | 47.6 gpm |
| Flow Rate @ 50 psi | Not Applicable |
| Chemical Compatibility | Calcium Carbonate, Water |
| Valve Material | Buna-N |
| Media Intake Connection Type | NPT |
| Flow Rate @ 90 psi | Not Applicable |
| Flow Rate @ 20 psi | 30.8 gpm |
| Valve Material | Buna-N |
| Manifold Connection Type | NPT |
| Operating Pressure (Maximum) | 100 psi |
| Flow Rate @ 80 psi | 51.9 gpm |
| Flow Rate @ 70 psi | Not Applicable |
| Non-Wetted Housing Material | Polypropylene |
| Package Quantity | 1 |
