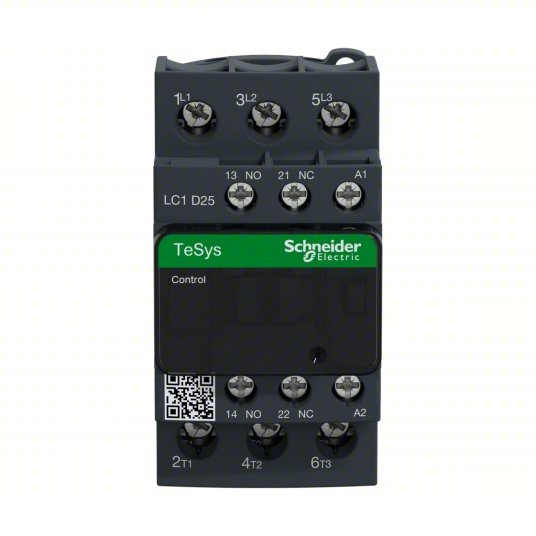

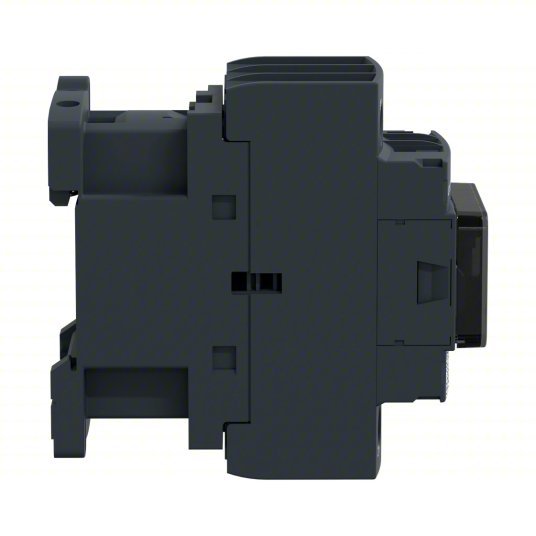

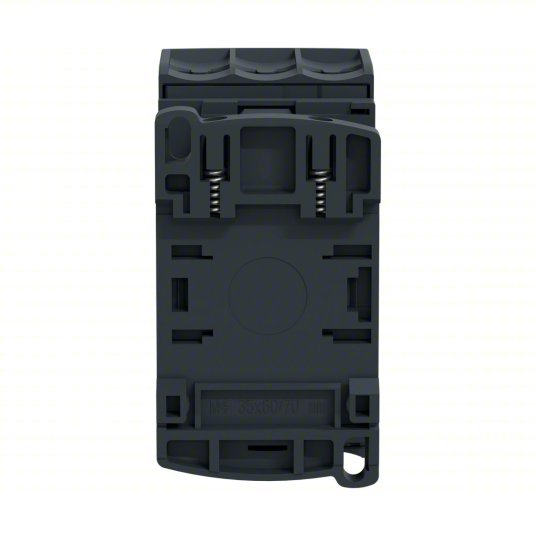

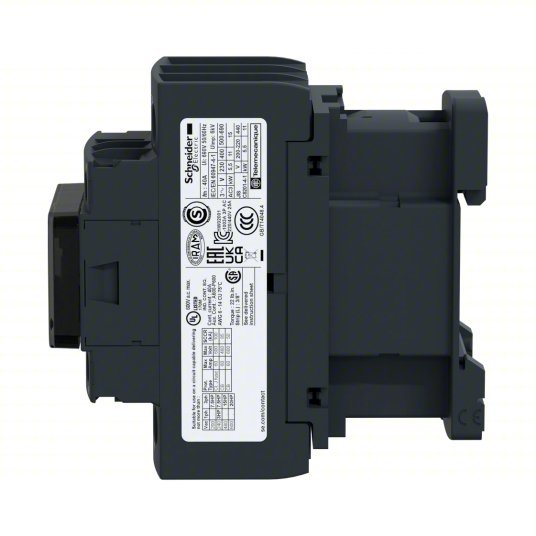

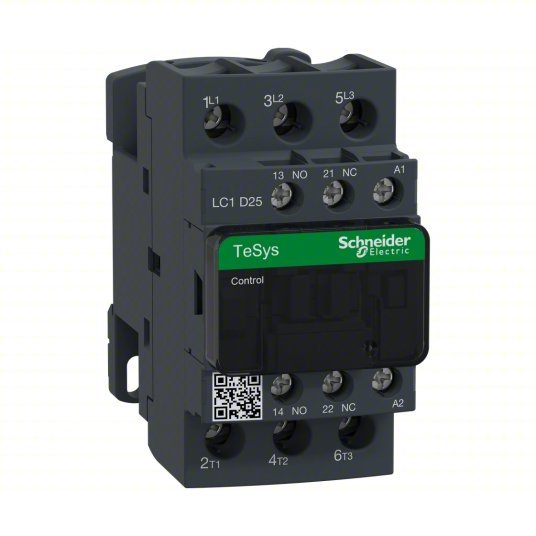

Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC
Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC

Schneider LC1D25F7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 110V AC Coil, 1NO/1NC

$274.58 - $274.58
$274.58
$274.58 - $274.58
$274.58
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 3.35 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
Full Load Amps-Resistive 40 A
Number of Poles 3
Coil Volts 110 V AC
Reversing No
HP @ 1 Phase - 120V 2 hp
HP @ 1 Phase - 240V 3 hp
HP @ 3 Phase - 208V 7 1/2 hp
HP @ 3 Phase - 575V 20 hp
HP @ 3 Phase - 240V 7 1/2 hp
HP @ 3 Phase - 480V 15 hp
Enclosure NEMA Rating No Enclosure
Aux. Contact Configuration 1NO/1NC
Hz 50/60
Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Frame / Series / Class / Code TeSys
Series TeSys Deca
Auxiliary Contact Form 1NO/1NC
Impedance 2 mOhm
Signalling Circuit Frequency 25 to 400 Hz
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70 °C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60 °C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60 °C 60 Hz), 1 to 1.1 Uc (at 60 to 70 °C 50/60 Hz)
Electrical Connection Screw Clamp Terminals
Application Motor Control, Resistive Load
Rated Insulation Volts 600/690V
Rated Voltage 690V AC, 300V DC
Switching Voltage 17 V (Signalling Circuit)
Max. Operating Watts 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 415 to 440V AC 50/60 Hz AC-3), 15 kW (at 500V AC 50/60 Hz AC-3), 15 kW (at 660 to 690V AC 50/60 Hz AC-3), 5.5 kW (at 400V AC 50/60 Hz AC-4), 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 11 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 415 to 440V AC 50/60 Hz AC-3e), 15 kW (at 500V AC 50/60 Hz AC-3e), 15 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Mounts On Plate, Rail
Includes Protective Cover Yes
Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Operating Time 12 to 22 ms (Closing), 4 to 19 ms (Opening)
Impulse Withstand Voltage 6 kV
Shock Resistance 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Thermal Amperage 10 A (at 60 °C Signalling Circuit), 40 A (at 60 °C Power Circuit)
Rated Breaking Capacity 450 A @ 440V
Switching Current 5 mA (Signalling Circuit)
Hold VA 7.5 VA (at 60 Hz 20 °C), 7 VA (at 50 Hz 20 °C)
Watts Loss 2 to 3W
IP Rating IP20
Non-Overlap Time 1.5 ms
Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Features Without Built-In Suppressor Module
Mechanical Durability 15 Mcycles
Overvoltage Category CAT III
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Net Weight 0.37 kg
Tightening Torque 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Max. Temperature 850 °C
Fire Rating UL 94 V1
Operating Speed 3600 cycles per hr
Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Electrical Durability 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V); 1.65 Mcycles (25 A, AC-3e, Less than 440 V)
Rated Short-Time Withstand Current 240 A (at 40 °C for 10 s Power Circuit), 380 A (at 40 °C for 1 s Power Circuit), 50 A (at 40 °C for 10 min Power Circuit), 120 A (at 40 °C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Inrush VA 70 VA
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Embedded Surge Suppressor No
Terminal Connection Type Screw Clamp Terminals
Resistance Properties Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 240V AC 7 1/2 hp
Horsepower @ Three Phase - 480V AC 15 hp
Contactor Style IEC
Maximum Operating Temperature 140 Degrees F
Horsepower @ Three Phase - 600V AC 20 hp
Mounting Style DIN Rail, Plate
Coil Voltage 110V AC
Reversing Capability Non-Reversing
Number of Auxillary Contacts 2
Minimum Operating Temperature -40 Degrees F
Number of Normally Open Main Contacts 3
Horsepower @ Single Phase - 120V AC 2 hp
Full Load Current - Inductive 25 A
Frequency 50/60 Hz
Horsepower @ Single Phase - 240V AC 3 hp
Horsepower @ Three Phase - 208V AC 7 1/2 hp
Full Load Current - Resistive 40 A
Phase Three
NEMA Enclosure Rating No Enclosure
Includes Auxiliary Contacts Yes
Electrical Operating Durability 1,400,000, 1,650,000
Mechanical Operating Durability 15,000,000
Maximum Voltage Rating 690V AC
Contact Compatibility M2
Average Impedance 2 mOhm - Ith 40 A 50 Hz for power circuit
Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Contactor Application Resistive load; Motor control
Connections - Terminals Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in ² (1 to 2.5 mm ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in ² (2.5 to 10 mm ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in ² (2.5 to 10 mm ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in ² (1 to 10 mm ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1.5 to 6 mm ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in ² (1.5 to 10 mm ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in ² (2.5 to 10 mm ²) - cable stiffness: solid without cable end
Product Certifications UL; BV; RINA; CCC; GL; GOST; DNV; LROS (Lloyds register of shipping); CSA; UKCA
Minimum Switching Voltage 17 V for signalling circuit
Hold-In Power Consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)); 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Control Circuit Type AC 50/60 Hz standard
Auxiliary Contact Composition 1 NO + 1 NC
Mounting Support Plate; Rail
Flame Retardance V1 conforming to UL 94
Pole Contact Composition 3 NO
Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit
Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Pollution Degree 3
Maximum Horse Power Rating 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 2 hp at 115 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors; 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
Utilisation Category AC-3; AC-4; AC-1; AC-3e
Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Power Dissipation Per Pole 3.2 W AC-1; 1.25 W AC-3; 1.25 W AC-3e
Fire Resistance 1562 °F (850 °C) IEC 60695-2-1
IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947
Protective Cover With
Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL
Control Circuit Voltage 110 V AC 50/60 Hz
Poles Description 3P
Protective Treatment THIEC 60068-2-30
Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
Compatibility Code LC1D
Minimum Switching Current 5 mA for signalling circuit
Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Rated Impulse Withstand Voltage 6 kV IEC 60947
Operating Altitude 0 to 9842.52 ft (0 to 3000 m)
Rated Operational Current 25 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 25 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Heat Dissipation 2 to 3 W at 50/60 Hz
Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms)
Product Or Component Type Contactor
IP Degree Of Protection IP20 front face IEC 60529
Permissible Ambient Air Temperature Around The Device -40 to 140 °F (-40 to 60 °C); 140 to 158 °F (60 to 70 °C) with derating
Inrush Power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)); 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Insulation Resistance Greater than 10 MOhm for signalling circuit
Motor Power KW 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3); 15 kW at 500 V AC 50/60 Hz (AC-3); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3); 5.5 kW at 400 V AC 50/60 Hz (AC-4); 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 15 kW at 500 V AC 50/60 Hz (AC-3e); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3e)
Conventional Free Air Thermal Current 10 A (at 140 °F (60 °C)) for signalling circuit; 40 A (at 140 °F (60 °C)) for power circuit
Rated Short Time Withstand Current 240 A 104 °F (40 °C) - 10 s for power circuit; 380 A 104 °F (40 °C) - 1 s for power circuit; 50 A 104 °F (40 °C) - 10 min for power circuit; 120 A 104 °F (40 °C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
