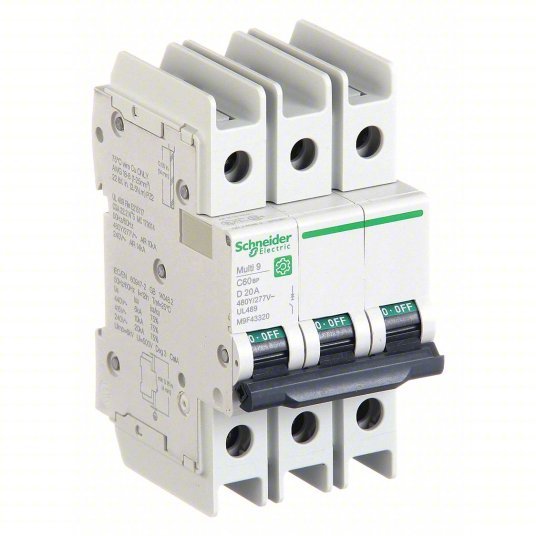

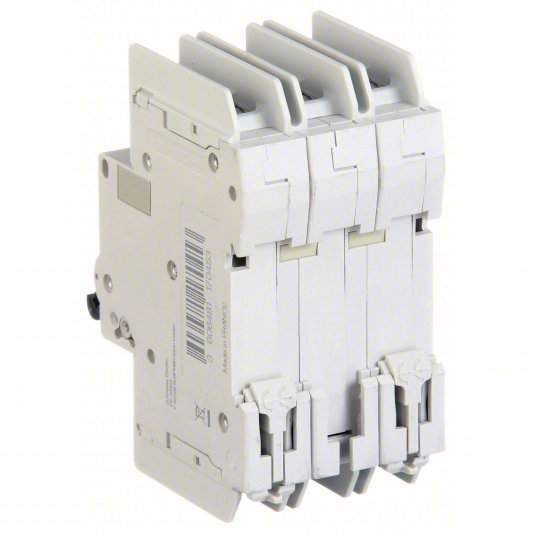

Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D
Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D
Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D
Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D

Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D

$400.44 - $400.44
$400.44
$400.44 - $400.44
$400.44
IEC Miniature Circuit Breaker, Amps 20 A, Number of Poles 3, Curve Type D, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 3, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 2.13 in, Depth 2.83 in, Frame Size 63A/C60BP
Series C60BP
Amps 20 A
Number of Poles 3
AC Voltage Rating 240/277/480V AC
Phase 3
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style DIN Rail
Max. AIR Rating 14kA at 120/240V AC
Trip Type Thermal Magnetic
Terminal Connection Screw Clamp
DC Voltage Rating Not Rated
Curve Type D
Mounting Din Rail
Application Branch Circuit Protection
Standards CCC, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489
Interrupt Rating 4.5 kA at 440V AC, 7.5 kA at 415V AC, 15 kA at 240V AC, 10 kA at 240/415/480Y/277V AC, 6 kA at 440V AC, 20 kA at 240V AC, 14 kA at 240V AC
Color Gray
Features Mercury Free; Padlockable
Max. Operating Temp. 158 Degrees F
Meets UL Type UL 489
Min. Operating Temp. -22 Degrees F
