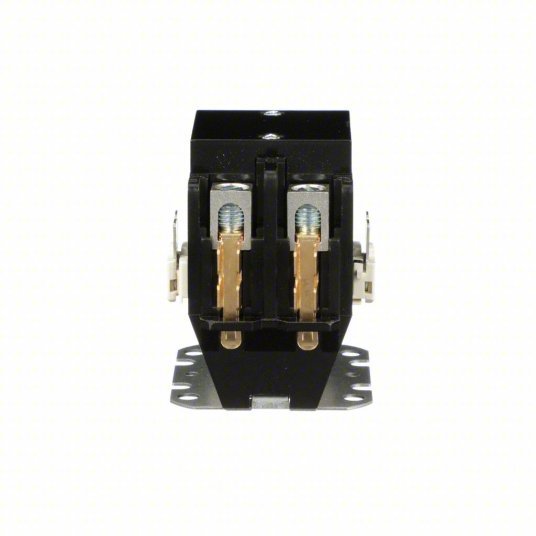

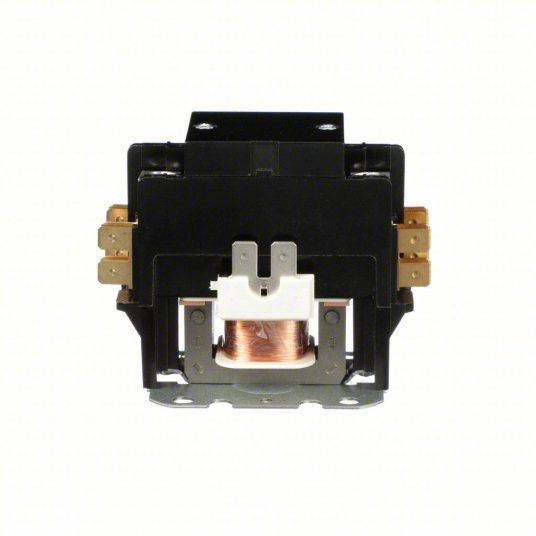

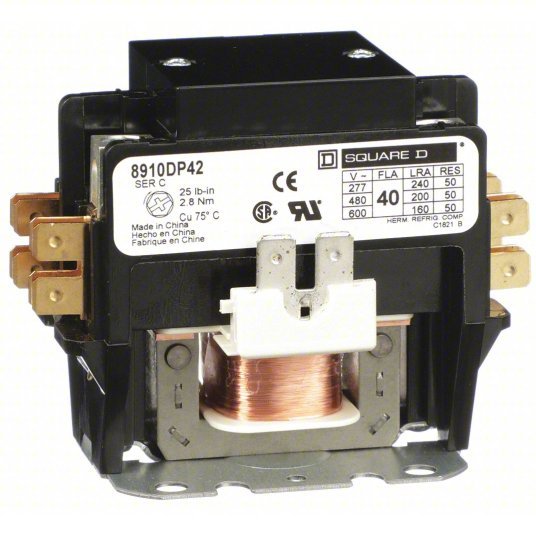

Square D 8910DP42V06 Definite Purpose Magnetic Contactor 2 Poles, 480V AC, 40 A, Non-Reversing
Original price
$108.80
-
Original price
$108.80
Original price
$108.80
$108.80
-
$108.80
Current price
$108.80
Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 440/480V AC, Series 8910 Series Type DP, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Single Phase - 120V AC 2 hp, Full Load Current - Resistive 120 A
| Full Load Amps-Inductive | 40 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 2 |
| Coil Volts | 480V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Enclosure Type | Open |
| Standards | CSA, REACH, RoHS, UL Listed |
| Includes | Quick Connect Terminal |
| Hz | 50/60 |
| Series | 8910 Series Type DP |
| Phase | Single |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 240V AC | 5 hp |
| Contactor Style | HVACR Definite Purpose Contactor |
| Full Load Current - Resistive | 120 A |
| Locked Rotor Load | 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 277V AC |
| Coil Voltage | 440/480V AC |
| Full Load Current - Inductive | 40 A |
| Number of Normally Open Main Contacts | 2 |
| Terminal Connection Type | Quick-Disconnect Terminals |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Frequency | 50/60 Hz |
