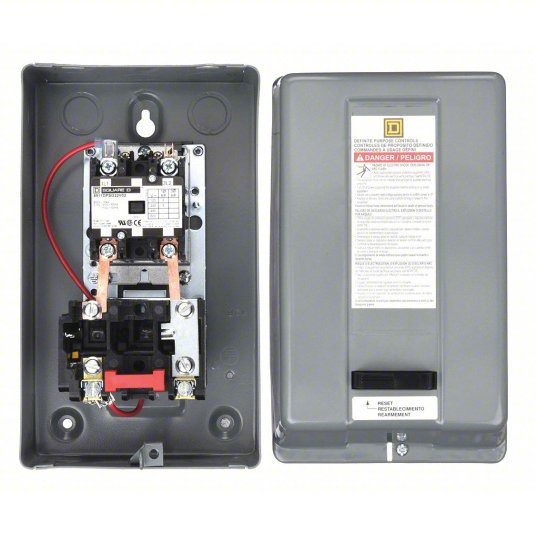

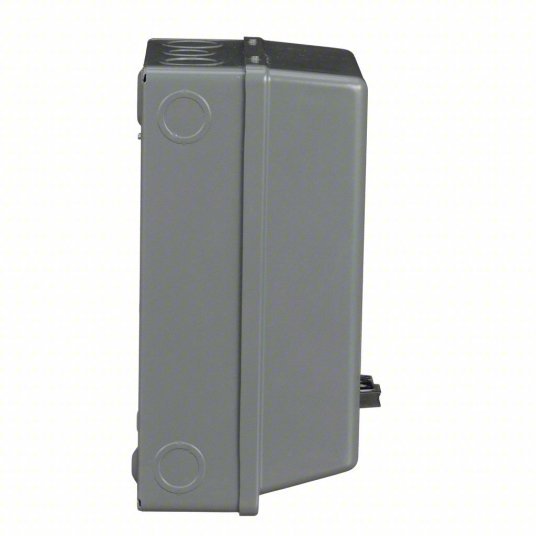

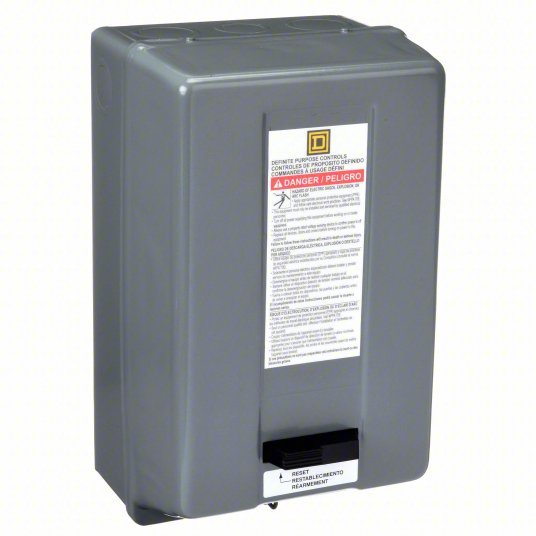

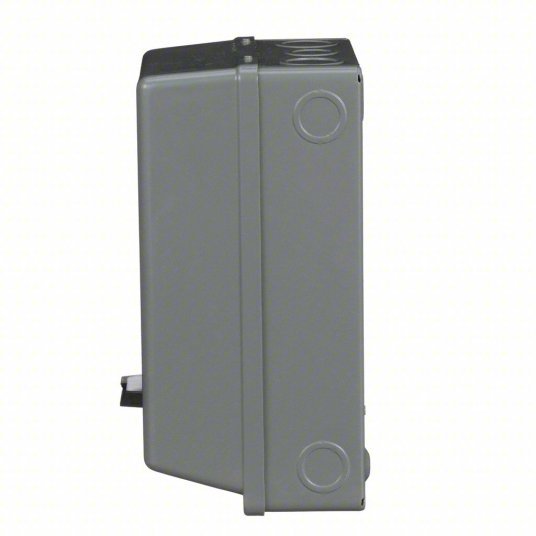

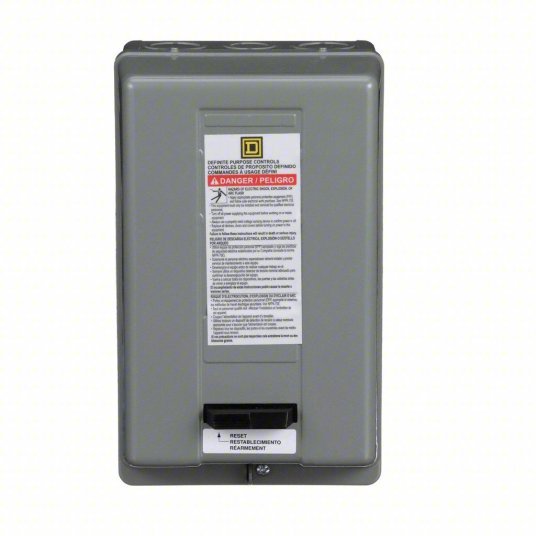

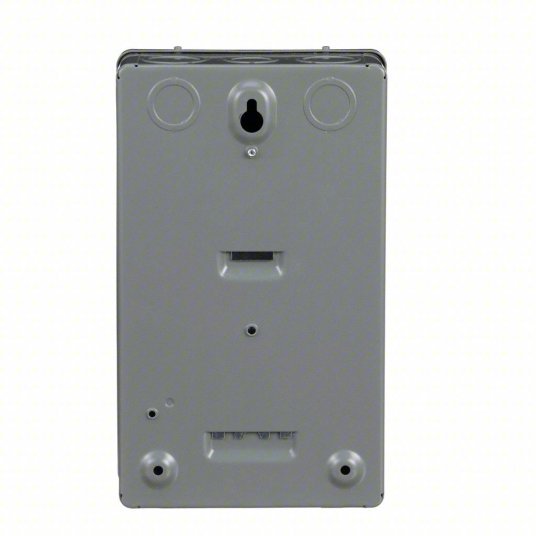

Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil
Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil

Square D 8911DPSG22V02 Definite Purpose Magnetic Motor Starter Non-Reversing, 2 Poles, 25 A, 120V AC Coil

$457.47 - $457.47
$457.47
$457.47 - $457.47
$457.47
Definite Purpose Magnetic Motor Starter, Series Class 8911 Type DP, Coil Voltage 120V AC, Maximum Voltage Rating 600V AC, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Single Phase - 120V AC 2 hp, Current AC 25 A, Number of Poles 2, NEMA Enclosure Rating 1, Reversing Capability Non-Reversing, Phase Single, Overload Protection Type Melting Alloy, Locked Rotor Load 100 A @ 575V AC, 125 A @ 460V AC, 150 A @ 230V AC, Mechanical Operating Durability 500,000, Frequency 50/60 Hz
Item Definite Purpose Magnetic Motor Starter
Coil Volts 120V AC
Enclosure NEMA Rating 1
HP @ 1 Phase - 240V 5 hp
Action Nonreversing
Amps AC 25 A
Number of Poles 2
HP @ 1 Phase - 120V 2 hp
Includes Trip-Free Reset Mechanism
Thermal Unit Code E2
Hz 50/60
Standards REACH, RoHS
NEMA Enclosure Rating 1
Maximum Voltage Rating 600V AC
Frequency 50/60 Hz
Coil Voltage 120V AC
Mechanical Operating Durability 500,000
Overload Protection Type Melting Alloy
Horsepower @ Single Phase - 120V AC 2 hp
Horsepower @ Single Phase - 240V AC 5 hp
Reversing Capability Non-Reversing
Series Class 8911 Type DP
Phase Single
Locked Rotor Load 100 A @ 575V AC, 125 A @ 460V AC, 150 A @ 230V AC
Current AC 25 A
