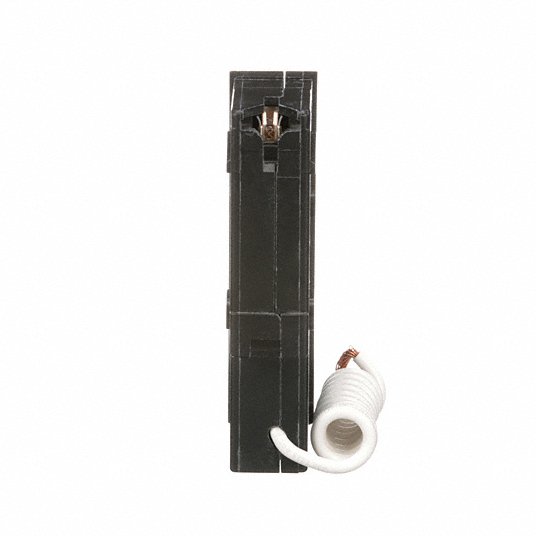

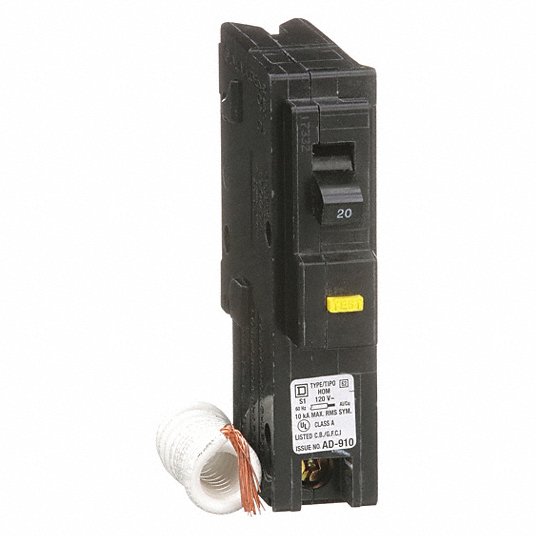

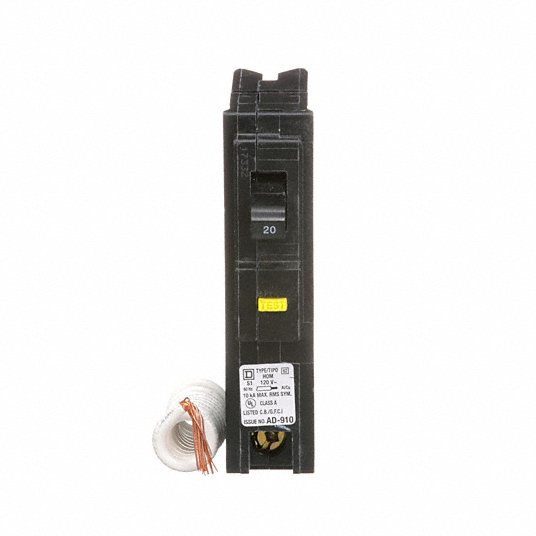

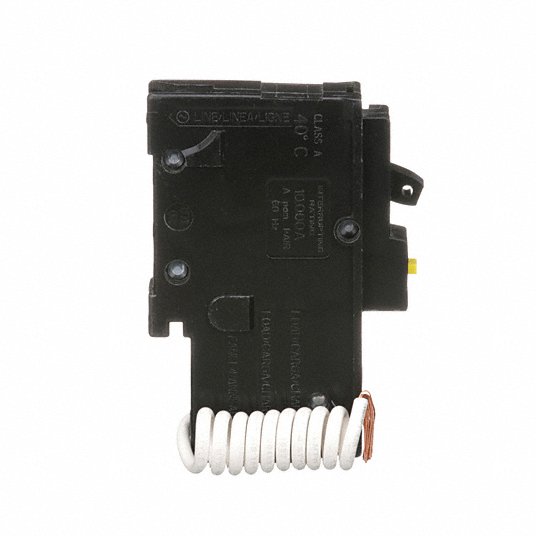

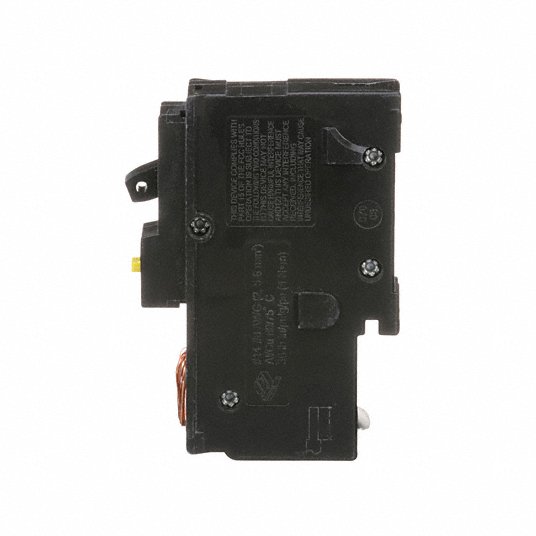

Square D HOM120GFI Miniature Circuit Breaker 20 A, 120V AC, Single Phase, 10kA at 120V AC, 1 Poles

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA), Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in

Series	HOMELINE
Amps	20A
Number of Poles	1
AC Voltage Rating	120V AC
Circuit Breaker Type	Ground Fault Protecting Class A 6 mA
Phase	1
Circuit Breaker Actuator	Paddle
Circuit Breaker Mounting Style	Plug In
Max. AIR Rating	10kA at 120V AC
Terminal Connection	Screw Clamp
DC Voltage Rating	Not Rated
Curve Type	A
Standards	CSA Certified, HACR, UL Listed
For Use With	Homeline Load Center, All-in-Ones, CSED, Meter Main, Homeline Circuit Breaker Accessory
Features	Mercury Free
Application	HACR rated Applications
Min. Operating Temp.	77 Degrees F
Max. Operating Temp.	104 Degrees F
Compatible Panelboard/Load Center Series	HOM
Certifications	UL Listed
Tightening Torque	36.29 lbf.in (4.1 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10)
Ambient Air Temperature For Operation	104°F (40°C)
Short Circuit Current Rating	10 kA
Ratings	HACR rated
Voltage	120/240 VAC
