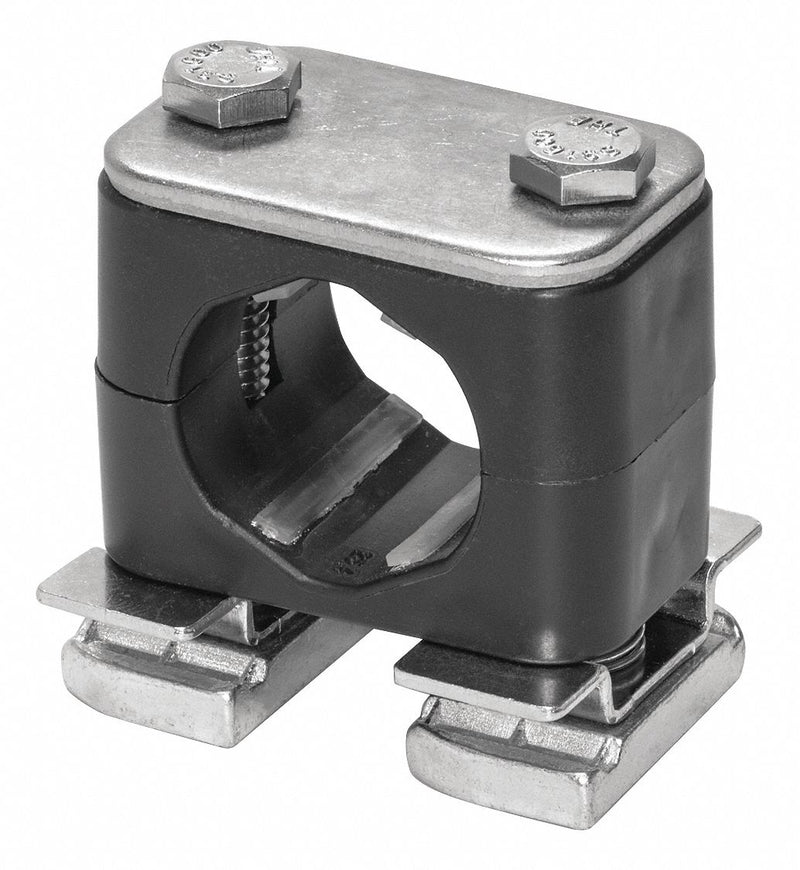

Stauff CRA-214-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 14 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount
Original price
$59.66
-
Original price
$59.66
Original price
$59.66
$59.66
-
$59.66
Current price
$59.66
Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Rail Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 14 mm, For Number of Lines 1
| Bore Style | Smooth |
|---|---|
| Clamp Material | 316 Stainless Steel |
| Clamp Material Finish | Elastomer |
| Clamp Type | Rail Mount Assembly |
| Cushion Material | Polypropylene |
| For Maximum Outside Diameter | 14 mm |
| For Number of Lines | 1 |
| Hardware Material | 316 Stainless Steel |
| Includes | (1) Rail Nut, (1) Hex Head Bolt, Clamp Set, Cover Plate |
| Insert Material | Polypropylene |
| Maximum Operating Pressure | 2,000 psi |
| Maximum Operating Temperature | 194 Degrees F |
| Minimum Operating Temperature | -13 Degrees F |
| Mount Type | Rail-Mount |
| Resistance Properties | Oil Resistant, Rain Resistant, Seawater Resistant |
| Series | Standard |
| Standards | API RP 552, DIN 3015-1, NACE SP 0108-2008 |
| System of Measurement | Metric |
| Type | Anti-Corrosion Rail Mount Standard Clamp |
| Country of Origin | Germany |
