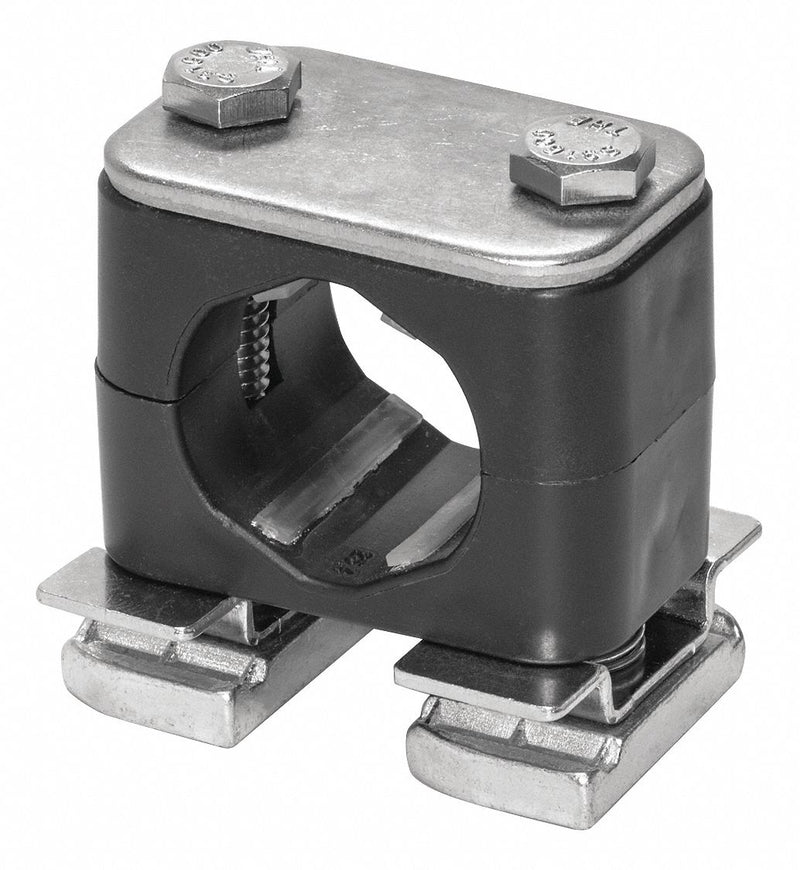

Stauff CRA-108A-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 8 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount
Original price
$58.93
-
Original price
$58.93
Original price
$58.93
$58.93
-
$58.93
Current price
$58.93
Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Rail Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 8 mm, For Number of Lines 1
| Bore Style | Smooth |
|---|---|
| Clamp Material | 316 Stainless Steel |
| Clamp Material Finish | Elastomer |
| Clamp Type | Rail Mount Assembly |
| Cushion Material | Polypropylene |
| For Maximum Outside Diameter | 8 mm |
| For Number of Lines | 1 |
| Hardware Material | 316 Stainless Steel |
| Includes | (1) Rail Nut, (1) Hex Head Bolt, Clamp Set, Cover Plate |
| Insert Material | Polypropylene |
| Maximum Operating Pressure | 2,000 psi |
| Maximum Operating Temperature | 194 Degrees F |
| Minimum Operating Temperature | -13 Degrees F |
| Mount Type | Rail-Mount |
| Resistance Properties | Oil Resistant, Rain Resistant, Seawater Resistant |
| Series | Standard |
| Standards | API RP 552, DIN 3015-1, NACE SP 0108-2008 |
| System of Measurement | Metric |
| Type | Anti-Corrosion Rail Mount Standard Clamp |
| Country of Origin | Germany |
