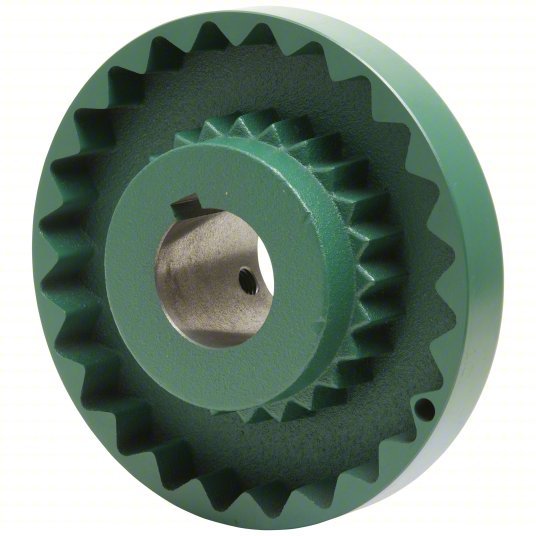

TB Wood's 11S278 Sleeve Coupling Flange 11 Coupling Size, 3,600 RPM Max Speed, 8 5/8 in Outside Dia, Inch

Sleeve Coupling Flange, Coupling Size 11, Maximum Speed 3,600 RPM, Maximum Torque 5,890 in-lb, Outside Diameter 8 5/8 in, Bore Type Round Keyed, Hub Diameter 5 1/4 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 2 7/8 in, Length through Bore 3 7/16 in, System of Measurement Inch, Hub Body Length 1 1/8 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0020 in

Flange Type - Sleeve Couplings	S
Bore Type - Couplings	Fixed Bore
Bushing Required	None
Max. RPM	3,600 RPM
Item	Sleeve Coupling Flange
Body Style	Type-S Flange Close Coupled
Ideal For	Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Material of Construction	cast iron
Setscrew Location	One Over the Key and One at 90 Degrees
Max. Angular Misalignment	0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Weight	16.6 lb
Hub Type	Flange Hub
Application	Compressors, Conveyors, Motors, Pumps
Included Screws	(2) Set Screws
Set Screw Location	One Over the Key and One at 90 Degrees
Bore Tolerance	+0.0005 in / +0.0020 in
Maximum Torque	5,890 in-lb
Features	4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
System of Measurement	Inch
Hub Material	Cast Iron
For Misalignment Type	Angular, Parallel
Resistance Properties	Chemical Resistant, Oil Resistant
Bore Type	Round Keyed
Maximum Speed	3,600 RPM
