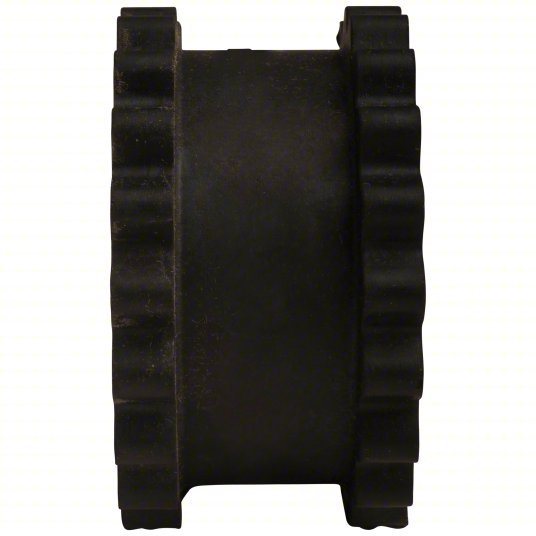

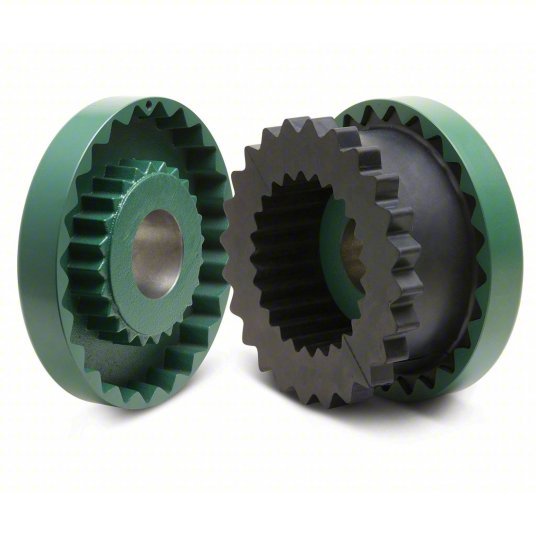

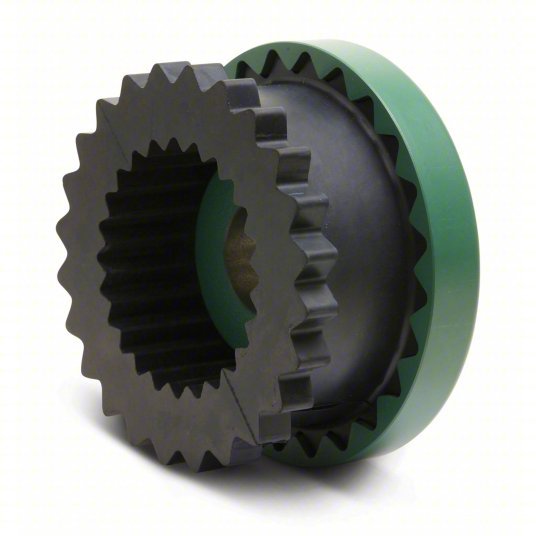

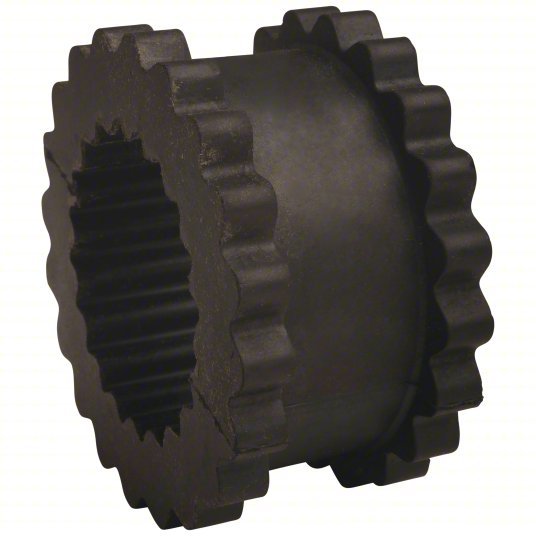

TB Wood's 6J Sleeve Coupling Insert 6 Coupling Size, 6,000 RPM Max Speed, 585 in-lb Rated Torque, EPDM

Sleeve Coupling Insert, Coupling Size 6, Maximum Speed 6,000 RPM, Maximum Torque 585 in-lb, Outside Diameter 3 3/4 in, Insert Construction 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.93 hp, Insert Material EPDM, Insert Width 1 7/8 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 1,718 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F

Flange Type - Sleeve Couplings	JE
Insert Design - Couplings	One-Piece Solid
Material - Inserts	EPDM Rubber
Rated Torque	585 in-lb
Max. RPM	6,000 RPM
HP Rating @ 100 RPM	0.93 hp
UPC	698672630047
Body Style	6JE
HP Rating @ 3600 RPM	33.42 hp
Application	Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Insert Material	EPDM
Item - Sleeve Coupling Inserts	Sleeve Coupling Insert
HP Rating @ 1800 RPM	16.71 hp
Operating Temp.	-30 Degrees to 275 Degrees F
HP Rating @ 1200 RPM	11.14 hp
Insert Design	One-Piece Solid
Features	4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Maximum Operating Temperature	275 Degrees F
Weight	0.4 lb
Maximum Torque	585 in-lb
Parallel Misalignment	0.015 in
Angular Misalignment	1 Degrees
Horsepower @ RPM	17 hp @1,800 RPM, 33 hp @3,600 RPM
Horsepower @ 100 RPM	0.93 hp
For Misalignment Type	Angular, Parallel
Maximum Speed	6,000 RPM
Minimum Operating Temperature	-30 Degrees F
System of Measurement	Inch
Torsional Stiffness	1,718 in-lb/rad
Resistance Properties	Chemical Resistant, Oil Resistant
