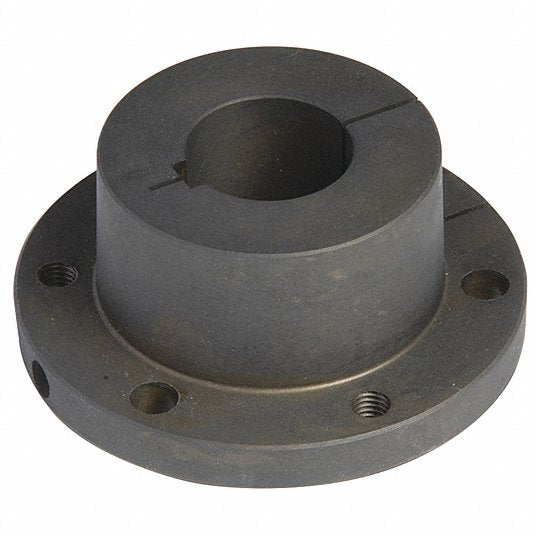

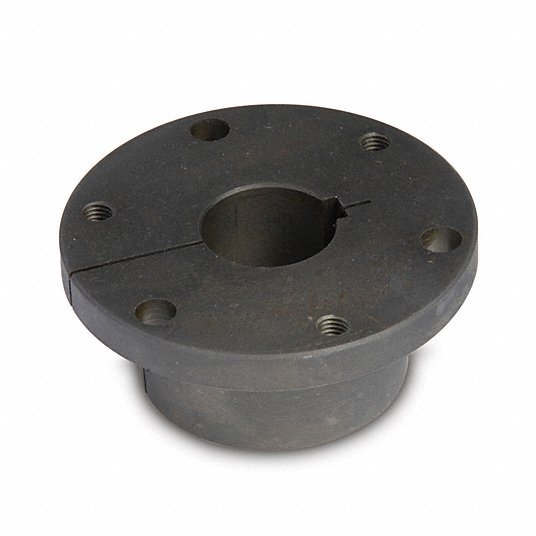

TB Woods SK11516 Quick Detachable Bushing SK, 1 15/16 in Bore Dia, 1.875 in Overall Lg, Inch
Original price
$78.60
-
Original price
$78.60
Original price
$78.60
$78.60
-
$78.60
Current price
$78.60
Quick Detachable Bushing, Bushing Type Quick Detachable, Bore Bushing Series SK, Bore Diameter 1 15/16 in, Length 1.875 in, Bolt Circle Diameter 3.31 in, Bolt Size 5/16 In.-18 x 2 in, System of Measurement Inch, Bushing Diameter 2.813 in, Flange Type Split, Flange Width 1/2 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 1/4 in, Keyway Width 1/2 in, Length Less Flange 1.375 in, Material Steel, Overall Diameter 3.875 in, SAE Grade 5, Taper 3/4 in Per ft
| Bore Bushing Series | SK |
| UPC | 698672701273 |
| Taper | 3/4 in Per ft |
| Material | Steel |
| SAE Grade | 5 |
| Includes | (3) Cap Screws |
| Flange Type | Split |
| System of Measurement | Inch |
| Bushing Type | Quick Detachable |
| Maximum Torque | 7,000 in-lb |
| For Shaft Type | Keyed |
