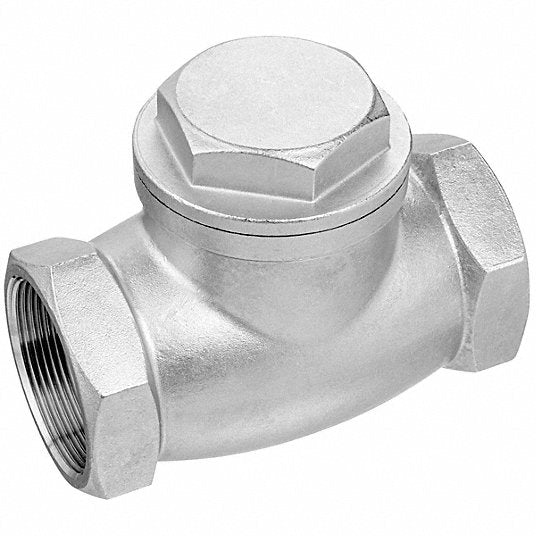

USA Industrials ZUSA-VLV-130 Check Valves Swing, 2-Way, Inline Valve Body, 1 in Pipe Size, FNPT x FNPT, Std
Original price
$190.45
-
Original price
$190.45
Original price
$190.45
$190.45
-
$190.45
Current price
$190.45
Check Valve, Flow Design Dual, Mechanism and Body Design Inline Swing, Body Material - Valves 304 Stainless Steel, Pipe or Tube Size 1 in, Connection Type FNPT x FNPT, Cracking Pressure 129 psi, Mounting Orientation Horizontal, Seal Material 304 Stainless Steel, Max. Temp. - Valves 300 Degrees F, Min. Temp. - Valves 0 Degrees F, Max. Water Pressure - Valves 200 psi, Max. Steam Pressure - Valves 80 psi WSP, Spring Material 304 Stainless Steel, Full Flow - Valves No
| Connection Type | FNPT x FNPT | Body Material | 304 Stainless Steel |
| Standards | ANSI B1.20.3 | Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | 80 psi WSP | Cap to Inlet Center | 1 9/32 in |
| Valve Ways | 2-Way | Mechanism and Body Design | Inline Swing |
| Max. Temp. - Valves | 300 Degrees F | Application - Valves | General Purpose |
| Flow Design | Dual | Seal Material | 304 Stainless Steel |
| Min. Temp. - Valves | 0 Degrees F | Body Material - Valves | 304 Stainless Steel |
| Cracking Pressure | 129 psi | Full Flow - Valves | No |
| Max. Water Pressure - Valves | 200 psi | Mounting Orientation | Horizontal |
| 3-A Standard Compliance | Not Rated | Connection Type - Side 2 | NPT |
| Operating Temperature - Minimum | 0 Degrees F | Valve Body Style | Inline |
| Maximum Pressure - Operating | 200 psi | Connection Type - Side 1 | NPT |
| Operating Temperature - Maximum | 300 Degrees F | Vacuum Service Rating | Not Rated |
| Maximum Pressure - Steam | 80 psi | Connection Gender - Side 2 | Female |
| Check Mechanism Material | 304 Stainless Steel | For Media | Steam, Water |
| Silent Check | Standard | Check Mechanism | Swing |
| Connection Gender - Side 1 | Female | Includes Counterweight | No Counterweight |
