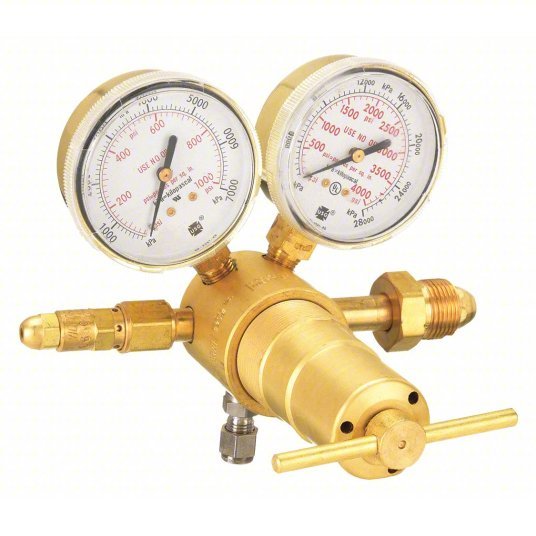

Victor 0781-1408 Gas Regulator Single Stage, CGA 580 Inlet, 1/4" Swagelok Outlet, 750 psig, Brass Diaphragm
Original price
$1,435.89
-
Original price
$1,435.89
Original price
$1,435.89
$1,435.89
-
$1,435.89
Current price
$1,435.89
Gas Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Argon, Helium, Nitrogen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 750 psig, Outlet Connection Gender Male, Outlet Connection Size 1/4 in, Outlet Connection Type Swagelok, Body Material Brass, Diaphragm Material Brass, CGA Number CGA 580, Application High Pressure, Duty Rating Heavy Duty
| Compatible Gas Type | Argon, Helium, Nitrogen |
| Body Material | Brass |
| Number of Stages | Single Stage |
| Outlet Pressure (Maximum) | 750 psig |
| Outlet Pressure (Minimum) | 50 psig |
| Regulator Supply Type | Cylinder |
| Regulator Application | High Pressure |
| Delivery Pressure Range | 50 to 750 psi |
| Diaphragm Material | Brass |
| Supply Pressure Gauge | 4,000 psi |
| Gauges Delivery Pressure | 750 psi |
| Regulator Capacity | Heavy Duty |
| Standards | ETL Listed, UL252 |
| Stages | Single Stage |
| Delivery | 6500 scfh |
| Application | High Pressure |
| Duty Rating | Heavy Duty |
| Type | Single Stage Piston |
| Features | Delrin Cap Bushing for Smooth Adjustments, External Adjustable Relief Valves on F and G Range Models, Hydrogen Models Have Ventable Relief Valves, Ideally Suited for Pressure Vessel and Dead-End Testing, Sintered Inlet Filter |
| Outlet Connection Gender | Male |
| Flow Coefficient | 0.1147 |
| Control Type | T-Handle |
| Regulator Series | SR 4 |
| Maximum Gauge Outlet Pressure | 4,000 psig |
| CGA Number | CGA 580 |
| Inlet Thread Direction | Right Hand |
| Inlet Connection Gender | Male |
| Inlet Connection Type | NGO |
| Inlet Pressure (Maximum) | 3,000 psig |
| Outlet Connection Type | Swagelok |
