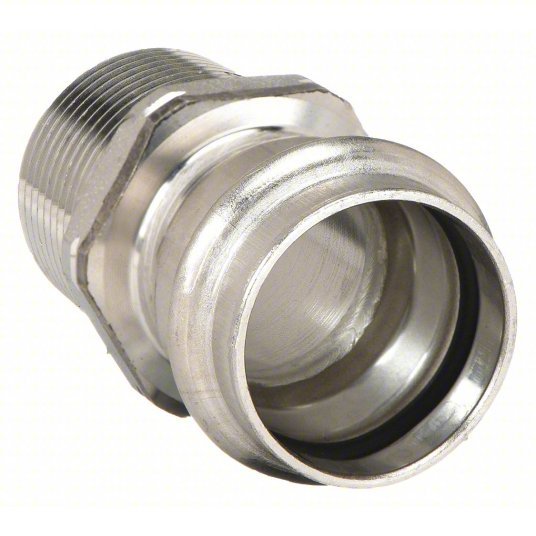

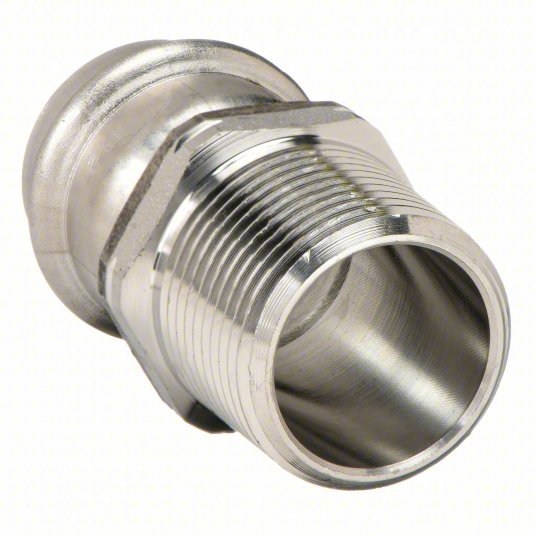

Viega 85027 Adapter 304 Stainless Steel, Press-Fit x MNPT, 3/4 in Copper Tube Size
Original price
$42.18
-
Original price
$42.18
Original price
$42.18
$42.18
-
$42.18
Current price
$42.18
Adapter, Application Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Stainless Steel, Fitting Side B Pipe Size 3/4 in, Material Grade 304, O-Ring Material FKM, Specific Fitting Shape Straight Adapter, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 284 Degrees F
| Item | Adapter |
| Tube Fitting Material | 304 Stainless Steel |
| Specific Fitting Shape | Straight Adapter |
| Fitting Connection Type | Press x Male Pipe Thread |
| Basic Pipe Fitting Material | Metal |
| Specific Pipe Fitting Shape | Adapter |
| Pipe Fitting Connection Type | Press x Male Pipe Thread |
| Basic Pipe Fitting Shape | Adapter |
| Temp. Range | 0 Degrees to 284 Degrees F |
| Compliance | ABS: America Bureau of Shipping, CRN 13492.5 A/B/C, UL852, ULC/ORD 213: Underwriters Laboratories (½ in to 2 in), ULC/ORD C199S |
| Max. Pressure | 200 psi |
| Standards | ABS Type Approval, ASME B31.1, ASME B31.3, ASME B31.9, ASTM A312, ASTM A554, CRN 13492.5 A/B/C, UL 852, ULC/ORD 213, ULC/ORD C199S |
| End Connection Type | Press, Threaded |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Material | Stainless Steel |
| Maximum Operating Temperature | 284 Degrees F |
| Fitting Shape | Adapter |
| Material Grade | 304 |
| Fitting Side A Connection Type | Press-Fit |
| Application | Non-Potable Water |
| Fitting Body Material | 304 Stainless Steel |
| Fitting Side B Connection Type | MNPT |
| Connection Type | Press-Fit x MNPT |
| Stop and Shape | Straight Adapter |
| Maximum Operating Pressure | 200 psi |
| O-Ring Material | FKM |
